`LotDefiner`¶

A LotDefiner is used to convert lots into aliquots.

A Plat, PlatGroup, and MegaPlat will have a LotDefiner in its .lot_definer attribute, which can be specified at init (lot_definer=<some LotDefiner object>) and/or modified later.

import pytrsplat

# Exclusively use defaults.
default_lot_definer = pytrsplat.LotDefiner(
    allow_defaults=True,
    standard_lot_size=40
)
plat = pytrsplat.Plat(lot_definer=default_lot_definer)

# Again use defaults.
megaplat = pytrs.MegaPlat()
megaplat.lot_definer.allow_defaults = True
megaplat.lot_definer.standard_lot_size = 80

# Use definitions that have been entered into a .csv file somewhere.
better_lot_definer = pytrsplat.LotDefiner.from_csv(r'some/path/lotdef.csv')
multipage_plat = pytrsplat.PlatGroup(lot_definer=better_lot_definer)
# Can still allow defaults for sections that don't have definitions.
multipage_plat.lot_definer.allow_defaults = True
multipage_plat.lot_definer.standard_lot_size = 40

Default lots¶

In a ‘typical’ township, lots exist in the sections along the north and west boundaries of the township – i.e., Sections 1 - 7, 18, 19, 30, and 31.

Usually, these are roughly 40-acre lots (.standard_lot_size = 40), but in some parts of the United States, they are approximately 80 acres (.standard_lot_size = 80). Other layouts probably exist but are not implemented in this library.

We can use allow_defaults = True to assume that the sections in the queue are ‘typical’.

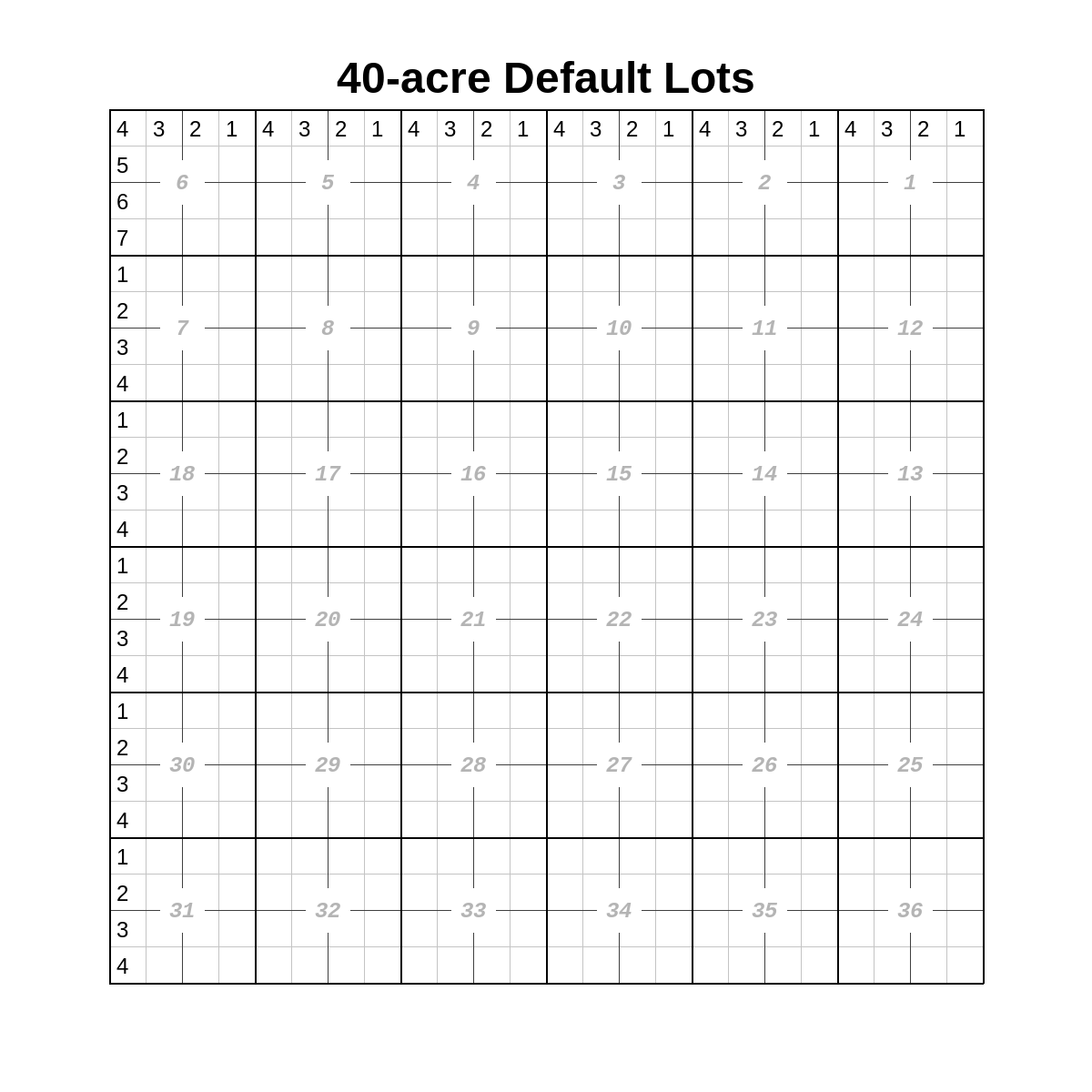

Default lots, where .standard_lot_size = 40:

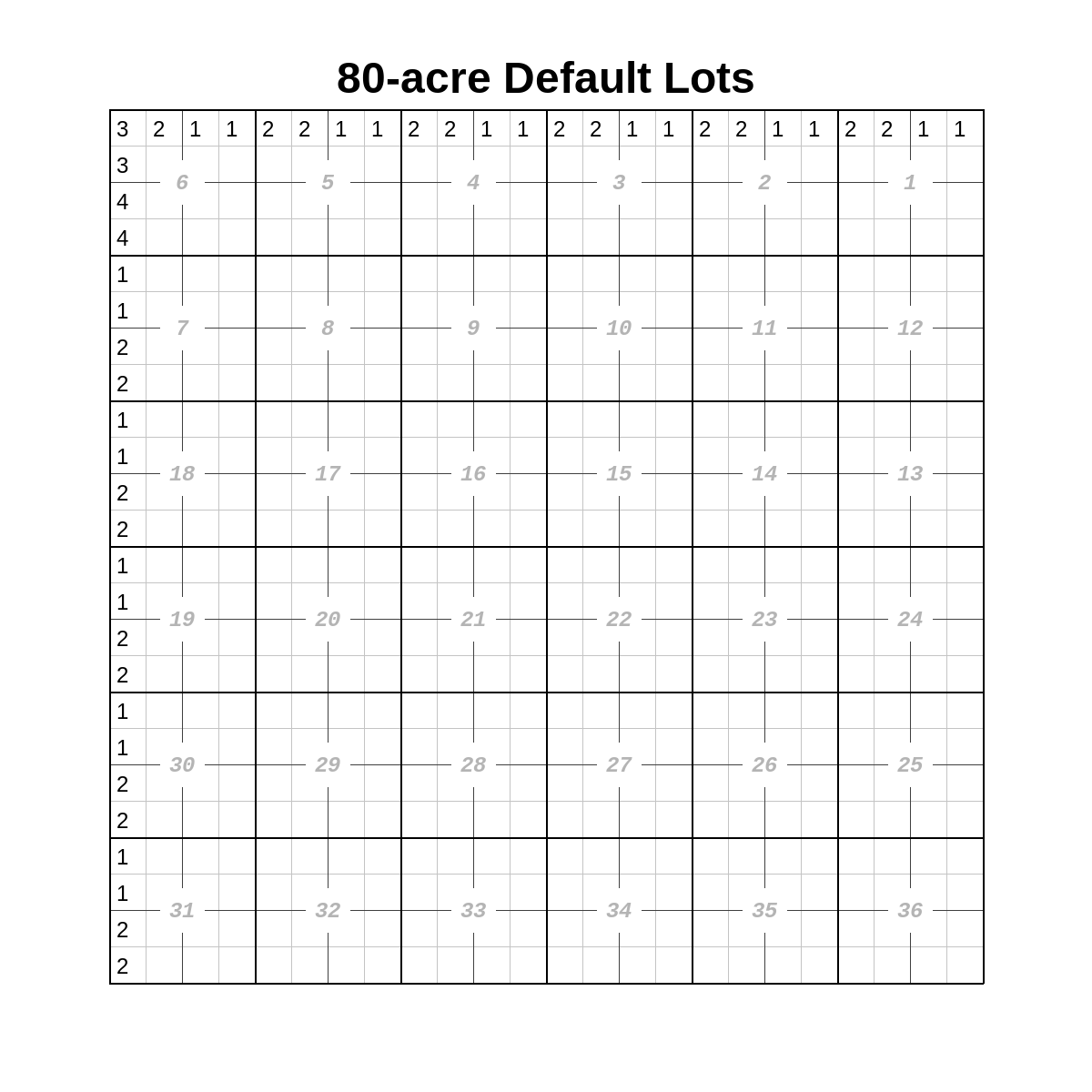

Default lots, where .standard_lot_size = 80:

Defining lots in .csv¶

The most efficient way to define lots is to add them to a .csv file and load them into a LotDefiner with LotDefiner.from_csv() or later with .read_csv().

import pytrsplat

lot_definer = pytrsplat.LotDefiner.from_csv(r'some/path/lot_definitions.csv')
# Keep the original definitions and add more of them from elsewhere.
lot_definer.read_csv(r'other/path/more_definitions.csv')

Below is an example of appropriate .csv formatting:

twp	rge	sec	lot	qq
154n	97w	1	L1	NENE
12s	58e	04	1	N2NE,SENE

Note

sec may optionally have a leading 0 (e.g., 4 or '04').

lot may optionally have a leading L (e.g., 1 or 'L1').

qq can be one or more aliquots, separate by comma as needed. Be sure to use ‘clean’ QQ definitions, such as the above.

Defining lots in code¶

import pytrsplat

lot_definer = pytrsplat.LotDefiner()
lot_definer.define_lot(
    trs='154n97w23',
    lot=1,
    definition='W2NE,NWSE'
)

trs must be in the standard pyTRS format, such as '154n97w01' or '2s58e24'.

Defining lots manually in console¶

When calling .execute_queue() on any plat-generating class, use parameter prompt_define=True to first check for undefined lots, and then prompt the user in the console to define them individually.

import pytrsplat

plat = pytrs.Plat(twp='154n', rge='97w')
plat.add_description('T154N-R97W Sec 1: Lots 1 and 2')
plat.execute_queue(prompt_define=True)  # Also works with `PlatGroup` and `MegaPlat`

Alternatively, if we want to prompt the user to define lots separately from executing the queue, by calling .prompt_define() on a LotDefiner object, and passing to it the list of pytrs.Tract objects.

import pytrsplat

some_list_of_tracts = pytrs.TractList()
# <fill some_list_of_tracts with pytrs.Tract objects>
# ...

some_lot_definer = pytrsplat.LotDefiner()
some_lot_definer.prompt_define(some_list_of_tracts)
# <Do whatever we want with the lot definitions.>
some_lot_definer.save_to_csv(r'some/path/manually_defined_lots.csv')

# ...
# And eventually, generate the plat.
plat = pytrs.Plat(twp='154n', rge='97w', lot_definer=some_lot_definer)
plat.add_tracts(some_list_of_tracts)
plat.execute_queue()
plat.output(fp=r"some/path/image.png")

Undefined Lots¶

When executing the queue in a Plat or other object, if a tract with an undefined lot is encountered, a custom pytrsplat.UndefinedLotWarning will be displayed, but no error will be raised.

To check the queue for undefined lots prior to executing the queue, call .find_undefined_lots().

import pytrsplat
plat = pytrsplat.Plat()
plat.add_description('T154N-R97W, Sec 9: Lot 1')

# plat.execute_queue()  # Would show a warning of undefined lots: <154n97w09: L1>
undefined_lots = plat.find_undefined_lots()
print(undefined_lots)   # {'154n97w09': ['L1']}

Or simply use .execute_queue(prompt_define=True) as mentioned above.

Methods and Attributes¶

class pytrsplat.LotDefiner(allow_defaults=False, standard_lot_size: int = 40)¶

A class for specifying which lots correspond to which aliquots, and for converting those lots into aliquots.

Can be passed as lot_definer= when initializing one of the various plat types, or accessed / modified in its .lot_definer attribute later.

Important attributes:

.allow_defaults - Whether to assume that all sections are ‘standard’, with typical lots (if any) in sections along the north and west township boundaries. Can be set at init with allow_defaults=<bool> (off by default).
.standard_lot_size - How big we assume a ‘standard’ lot is in the township(s) being considered. Must be either 40 or 80. (This determines the default lot definitions.) Can be set at init with standard_lot_size=<40 or 80>. (40 by default.)

__init__(allow_defaults=False, standard_lot_size: int = 40)¶

Parameters:

allow_defaults – Whether to assume that all sections are ‘standard’, with typical lots (if any) in sections along the north and west township boundaries. Can be changed later in the .allow_defaults attribute.
standard_lot_size – How big we assume a ‘standard’ lot is in the township(s) being considered. Must be either 40 or 80. (This determines the default lot definitions.) Can be changed later in the .standard_lot_size property.

convert_lots(lots: list[str], trs: str, allow_defaults: bool = None)¶

Convert a list of lots (from the .lots of a pytrs.Tract object) into corresponding aliquots.

Parameters:

lots – The list of lots to convert.
trs – The Twp/Rge/Sec (in the pyTRS format, '154n97w01') of the section that the lots belong to.
allow_defaults – Whether to assume that this section is ‘standard’, with typical lots (if any) in sections along the north and west township boundaries. If not specified here, will use whatever is configured in the .allow_defaults attribute.

Returns:

List of converted lots (as aliquots); and a list of lots that could not be converted.

defaults(twp, rge)¶: Get default lot definitions for this Twp/Rge.

define_lot(trs: str | TRS, lot: int | str, definition: str)¶

Parameters:

trs – The Twp/Rge/Sec in the pyTRS format (e.g., '154n97w01').
lot – The lot number, either as 'L1' or as int.
definition – The aliquots that make up this lot, separated by comma if necessary. (Be sure to use 'clean_qq' compatible definitions, such as 'NENE' or 'N2NW,SENW'. (Reference the pyTRS documentation for more info.)

find_undefined_lots(tracts: list[Tract] | TractList | PLSSDesc, allow_defaults: bool = None, fp: str | Path = None, **headers) → dict[str, list[str]]¶

Find all tracts that have one or more lots that have not been defined. Optionally write them to a .csv file at path fp, to facilitate defining them externally.

Warning

If passing fp, any file at that path will be overwritten without warning.

Parameters:

tracts – A collection of pytrs.Tract objects that have been parsed to lots and QQs.
allow_defaults – Whether to assume that all sections are ‘standard’, with typical lots (if any) in sections along the north and west township boundaries. If not specified here, will use whatever is configured in the .allow_defaults attribute.
fp – (Optional) A filepath at which to create a .csv file containing the undefined lots.
headers – (Optional) If saving the undefined lots to a .csv file, pass keyword arguments to specify the desired headers. (Reference the docs for LotDefiner.save_to_csv() for the appropriate parameters.)

Returns:

A dict, keyed by Twp/Rge/Sec ('154n97w01'), whose values are a sorted list of lots for that Twp/Rge/Sec.

classmethod from_csv(fp: str | Path, twp='twp', rge='rge', sec='sec', lot='lot', qq='qq', allow_defaults=False, standard_lot_size: int = 40) → LotDefiner¶

Create a LotDefiner from csv file. The data should be compatible with pyTRS formatting.

Example .csv formatting:

twp	rge	sec	lot	qq
154n	97w	1	L1	NENE
12s	58e	04	1	N2NE,SENE

sec may optionally have a leading 0 (e.g., 4 or '04').

lot may optionally have a leading L (e.g., 1 or 'L1').

qq can be one or more aliquots. Be sure to use ‘clean’ QQ definitions, such as the above.

Parameters:

fp – Path to the .csv file to load.
twp – Header for the Twp column.
rge – Header for the Rge column.
sec – Header for the Sec column.
lot – Header for the Lot column.
qq – Header for the lot definition (aliquots) column.
allow_defaults – Whether to assume that all sections are ‘standard’, with typical lots (if any) in sections along the north and west township boundaries. Can be changed later in the .allow_defaults attribute.
standard_lot_size – How big we assume a ‘standard’ lot is in the township(s) being considered. Must be either 40 or 80. (This determines the default lot definitions.) Can be changed later in the .standard_lot_size property.

get_all_definitions(include_defaults: bool = None, mandatory_twprges: list[str] = None) → dict[str, dict[str, str]]¶

Get all definitions, including any defaults (if so configured or requested).

Parameters:

include_defaults – Whether to include defaults in the returned definitions. If not specified here, will use whatever has been configured in .allow_defaults.
mandatory_twprges – (Optional) A list of Twp/Rge’s (in the pyTRS format, '154n97w') that must be included in the return definitions. Will add any such Twp/Rge that is not already found in this LotDefiner.

Returns:

A dict of definitions that looks like this: {'154n97w01': {'L1': 'NENE', 'L2', 'NWNE'} }

process_tract(tract: pytrs.Tract, allow_defaults: bool = None, commit=True)¶

Convert .lots in the tract into QQs, identify any undefined lots. If commit=True, set them to ad-hoc attributes .lots_as_qqs and undefined_lots, respectively.

Parameters:

tract – A pytrs.Tract object that has already been parsed into lots and QQs.
allow_defaults – Whether to assume that this section is ‘standard’, with typical lots (if any) in sections along the north and west township boundaries. If not specified here, will use whatever is configured in the .allow_defaults attribute.
commit – (Optional, on by default). Whether to store the results to .lots_as_qqs and undefined_lots.

Returns:

Two lists: The first being the converted aliquots, and the second being a list of lots that have not been defined.

process_tracts(tracts: list[Tract] | TractList | PLSSDesc) → None¶

Convert .lots in the tracts into QQs, and add them to ad-hoc attribute .lots_as_qqs for each tract. Also add an ad-hoc .undefined_lots attribute to each tract for any lots that have not been defined.

Parameters:: tracts – A container of pytrs.Tract objects that have already been parsed into lots and QQs.

prompt_define(tracts: TractList, allow_defaults: bool = None)¶

Prompt the user in console to define all lots that have not yet been defined. Any new lot definitions will be added to the LotDefiner.

(You may wish to save the results with .save_to_csv() so that they can be loaded and reused later.)

Parameters:

tracts – The tracts to check for undefined lots.
allow_defaults – Whether to assume that this section is ‘standard’, with typical lots (if any) in sections along the north and west township boundaries. If not specified here, will use whatever is configured in the .allow_defaults attribute.

read_csv(fp: str | Path, twp='twp', rge='rge', sec='sec', lot='lot', qq='qq')¶

Load lot definitions from csv file into this existing LotDefiner. The data should be compatible with pyTRS formatting.

Example .csv formatting:

twp	rge	sec	lot	qq
154n	97w	1	L1	NENE
12s	58e	04	1	N2NE,SENE

sec may optionally have a leading 0 (e.g., 4 or '04').

lot may optionally have a leading L (e.g., 1 or 'L1').

qq can be one or more aliquots. Be sure to use ‘clean’ QQ definitions, such as the above.

Parameters:

fp – Path to the .csv file to load.
twp – Header for the Twp column.
rge – Header for the Rge column.
sec – Header for the Sec column.
lot – Header for the Lot column.
qq – Header for the lot definition (aliquots) column.

save_to_csv(fp: str | Path, twp='twp', rge='rge', sec='sec', lot='lot', qq='qq')¶

Save the definitions (excluding defaults) to a .csv file that can be reloaded later with .from_csv() or .read_csv().

Warning

Will overwrite any file that exists as fp without warning.

Parameters:

fp – Path to the .csv file to save to.
twp – Header for the Twp column.
rge – Header for the Rge column.
sec – Header for the Sec column.
lot – Header for the Lot column.
qq – Header for the lot definition (aliquots) column.
